[2022年01月10日] あなたを合格させる300-620無料最新問題集でCisco練習テスト
無料でゲット！高評価Cisco 300-620試験問題集を今すぐダウンロード！
Cisco 300-620 認定試験の出題範囲：
| トピック | 出題範囲 |
|---|---|
| トピック 1 |
|
| トピック 2 |
|
| トピック 3 |
|
| トピック 4 |
|
| トピック 5 |
|
| トピック 6 |
|
質問 22
An engineer has set the VMM resolution immediacy to pre-provision in a Cisco ACI environment. No Cisco Discovery Protocol neighborship has been formed between the hypervisors and the ACI fabric leaf nodes. How does this affect the download policies to the leaf switches?
- A. No policies are downloaded because LLDP is the only supported discovery protocol.
- B. Policies are downloaded when the hypervisor host is connected to the VMM VDS.
- C. Policies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship.
- D. No policies are downloaded because there is no discovery protocol neighborship.
正解: C
解説:
Section: Integrations
質問 23
An engineer must connect Cisco ACI fabric using Layer 2 with external third-party switches. The third-party switches are configured using 802.1s protocol. Which two constructs are required to complete the task?
(Choose two.)
- A. static binding of native VLAN in all existing EPGs
- B. MCP instance policy with administrative slate disabled
- C. spanning tree policy for mapping MST Instances to VLANs
- D. dedicated EPG for native VLAN
- E. MCP policy with PDU per VLAN enabled
正解: B,E
質問 24
A network engineer demonstrates Cisco ACI to a customer. One of the test cases is to validate a disaster recovery event by resetting the ACI fabric to factory and then restoring the fabric to the state it was in before the event. Which setting must be enabled on ACI to export all configuration parameters that are necessary to meet these requirements?
- A. encrypted export destination
- B. enabled JSON format export
- C. enabled AES encryption
- D. generated a tech-support file
正解: C
質問 25
When creating a subnet within a bridge domain, which configuration option is used to specify the network visibility of the subnet?
- A. limit IP learning to subnet
- B. gateway IP
- C. scope
- D. subnet control
正解: B
解説:
Section: ACI Fabric Infrastructure
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/ b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_0111.html
質問 26
Refer to the exhibit.
A systems engineer is implementing the Cisco ACI fabric. However, the Server2 information is missing from the Leaf 101 endpoint table and the COOP database of the spine. The requirement is for the bridge domain configuration to enforce the ACI fabric to forward the unicast packets generated by Server1 destined to Server2. Which action must be taken to meet these requirements?
- A. Set L2 Unknown Unicast to Flood
- B. Enable Unicast Routing
- C. Enable ARP Flooding
- D. Set IP Data-Plane Learning to No
正解: A
解説:

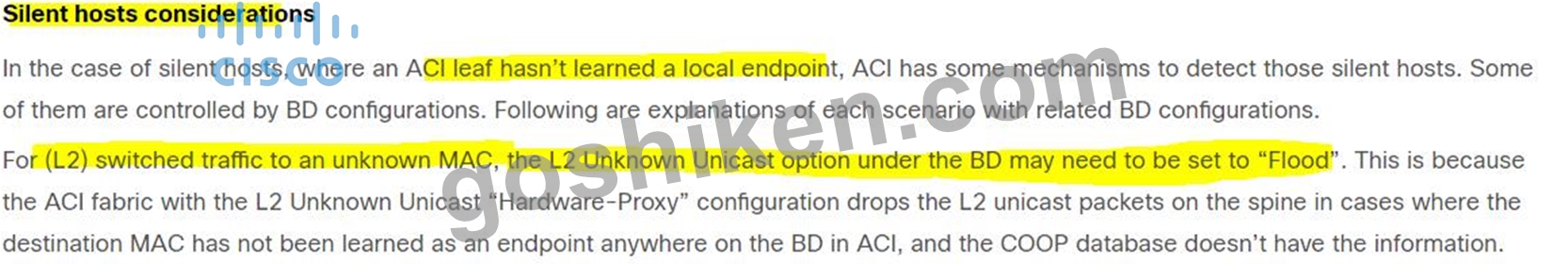

Both servers are in the same subnet. ARP flooding is out if we read the article in the link. Also unicast routing is not needed.
https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739989.html
質問 27

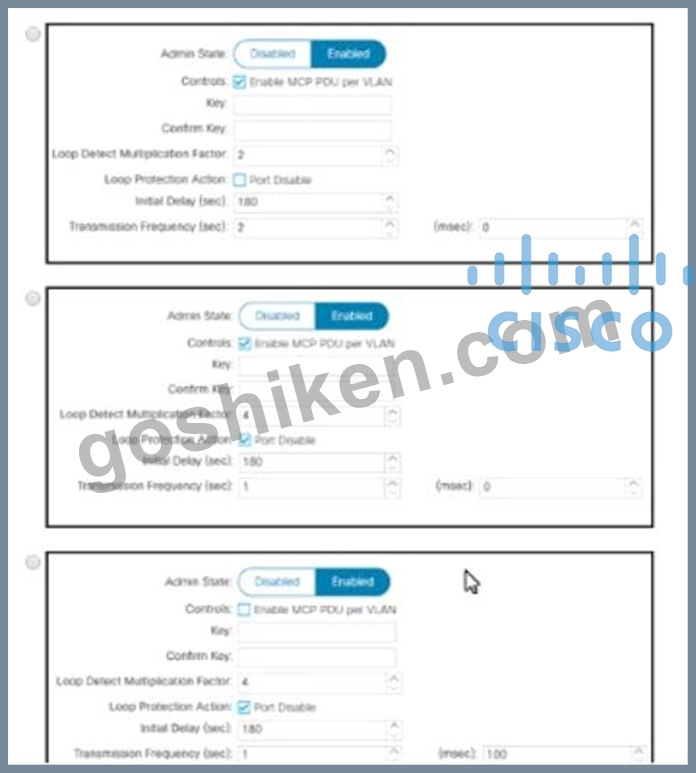

A network engineer must configure a Cisco ACI system to detect network loops for untagged and tagged traffic The loop must be detected and slopped by disabling an interface within 4 seconds Which configuration must be used?
- A. Option B
- B. Option C
- C. Option A
正解: A
質問 28
Which description regarding the initial APIC cluster discovery process is true?
- A. The APIC discovers the IP address of the other APIC controllers by using Cisco Discovery Protocol.
- B. Every switch is assigned a unique AV by the APIC.
- C. The APIC uses an internal IP address from a pool to communicate with the nodes.
- D. The ACI fabric is discovered starting with the spine switches.
正解: C
解説:
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/ b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010011.html
質問 29
Which action sets Layer 2 loop migration in an ACI Fabric with a Layer 2 Out configured?
- A. Disable STP in the external network.
- B. Disable STP on the ACI fabric.
- C. Enable STP on the ACI fabric.
- D. Enable MCP on the ACI fabric.
正解: D
質問 30
An engineer must securely export Cisco APIC configuration snapshots to a secure, offsite location The exported configuration must be transferred using an encrypted tunnel and encoded with a platform-agnostic data format that provides namespace support Which configuration set must be used?
- A. Option C
- B. Option B
- C. Option A
- D. Option D
正解: D
質問 31
Which routing protocol is supported between Cisco ACI spines and IPNs in a Cisco ACI Multi-Pod environment?
- A. ISIS
- B. BGP
- C. EIGRP
- D. OSPF
正解: D
質問 32
An ACI administrator notices a change in the behavior of the fabric. Which action must be taken to determine if a human intervention introduced the change?
- A. Inspect the output of show command history in the APIC CLI.
- B. Inspect audit logs in the APIC UI to see all user events.
- C. Inspect /var/log/audit_messages on the APIC to see a record of all user actions.
- D. Inspect event records in the APIC UI to see all actions performed by users.
正解: D
質問 33

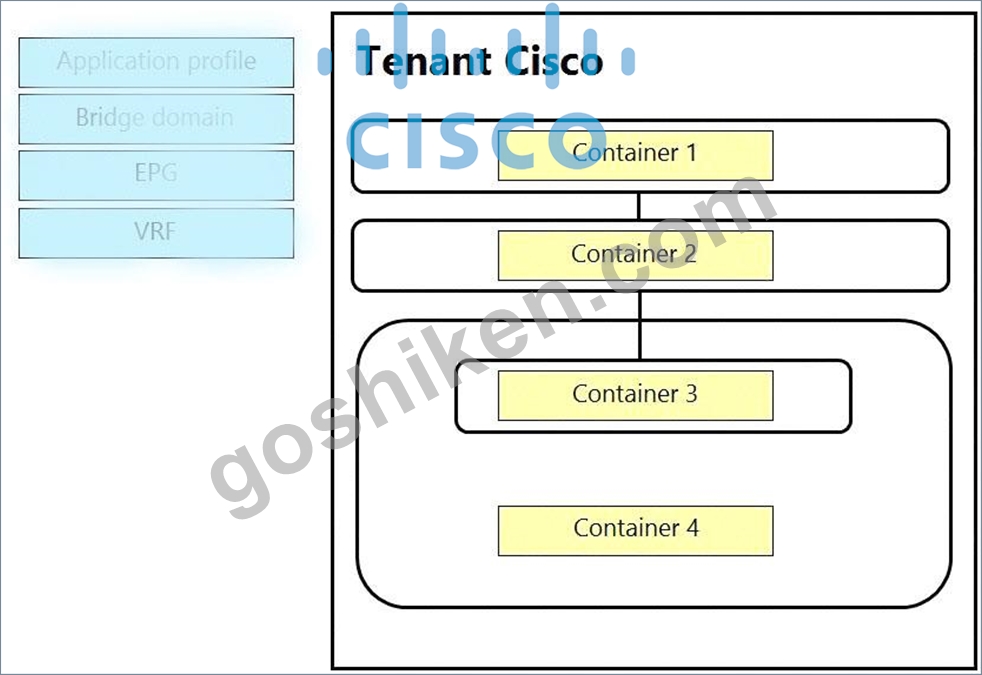

An engineer is configuring a VRF for a tenant named Cisco. Drag and drop the child objects on the left onto the correct containers on the right for this configuration.

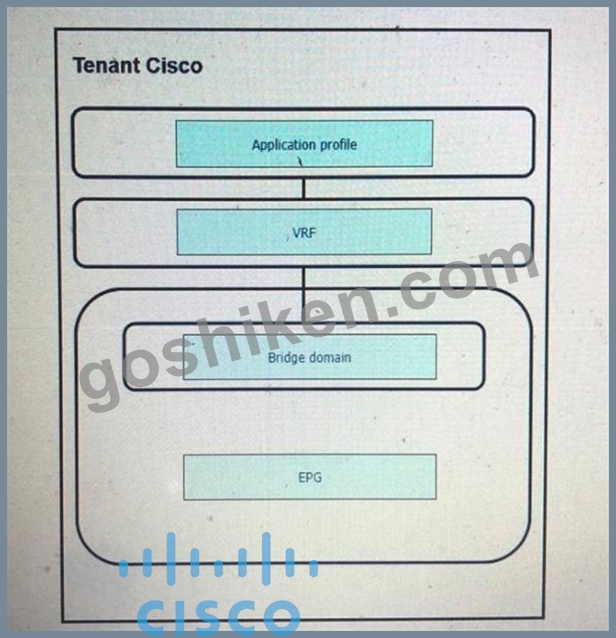

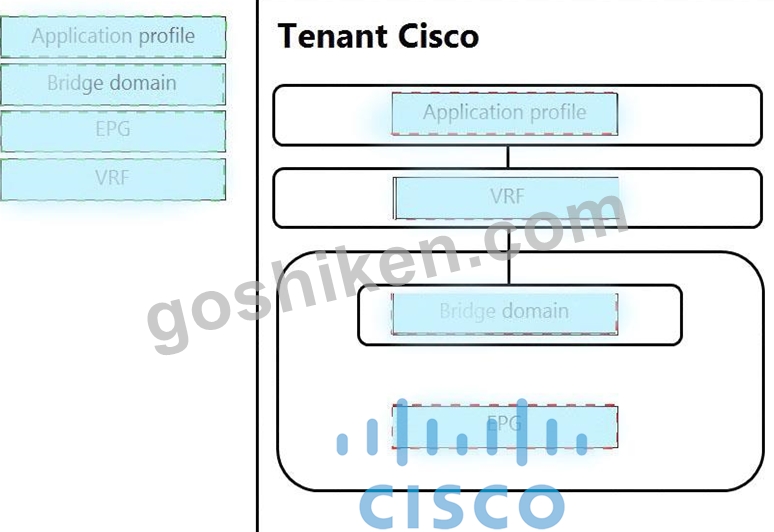

正解:
解説:
Explanation
Application profile---> VRF--> Bridge Domain---> EPG
質問 34
An engineer must ensure that Cisco ACI flushes the appropriate endpoints when a topology change notification message is received in an MST domain. Which three steps are required to accomplish this goal? (Choose three.)
- A. Enable the BPDU interface controls under the spanning tree interface policy.
- B. Create a new region policy under the spanning tree policy.
- C. Bind the spanning tree policy to the switch policy group.
- D. Map VLAN range to MAT instance number.
- E. Associate the STP interface policy to the appropriate interface policy group.
- F. Configure a new STP interface policy.
正解: A,E,F
質問 35
Which type of policy configures the suppression of faults that are generated from a port being down?
- A. fault lifecycle assignment
- B. fault severity assignment
- C. event lifecycle assignment
- D. event severity assignment
正解: B
解説:
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/all/faults/guide/ b_APIC_Faults_Errors/b_IFC_Faults_Errors_chapter_01.html
質問 36
Which endpoint learning operation is completed on the egress leaf switch when traffic is received from an L3Out?
- A. The source MAC address of the traffic is learned as a remote endpoint.
- B. The source MAC and IP address of the traffic is learned as a local endpoint.
- C. The source IP address of the traffic is learned as a remote endpoint.
- D. No source MAC or IP address of the traffic is learned as a remote endpoint.
正解: A
質問 37
Refer to the exhibit.
Which two objects are created as a result of the configuration? (Choose two.)
- A. endpoint group
- B. application profile
- C. VRF
- D. bridge domain
- E. attachable AEP
正解: C,D
質問 38
Where is the COOP database located?
- A. leaf
- B. endpoint
- C. APIC
- D. spine
正解: D
解説:
Reference:
https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric- infrastructure/white-paper-c11-739989.html
質問 39
A Solutions Architect is asked to design two data centers based on Cisco ACI technology that can extend L2/ L3, VXLAN, and network policy across locations. ACI Multi-Pod has been selected. Which two requirements must be considered in this design? (Choose two.)
- A. Multi-Pod requires multiple APIC Controller Clusters, one per pod. Make sure those clusters can communicate to each other through a highly available connection.
- B. A single APIC Cluster is required in a Multi-Pod design. It is important to place the APIC Controllers in different locations in order to maximize redundancy and reliability.
- C. ACI Multi-Pod requires an IP Network supporting PIM-Bidir.
- D. ACI Multi-Pod does not support Firewall Clusters across Pods. Firewall Clusters should always be local.
- E. ACI underlay protocols, i.e. COOP, IS-IS and MP-BGP, spans across pods. Create QoS policies to make sure those protocols have higher priority.
正解: A,E
質問 40
On which two interface types should a user configure storm control to protect against broadcast traffic? (Choose two.)
- A. APIC facing interfaces
- B. fabric uplink interfaces on the leaf switches
- C. all interfaces on the leaf switches in the fabric
- D. endpoint-facing trunk interface
- E. port channel on a single leaf switch
正解: D,E
解説:
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L2_config/ b_Cisco_APIC_Layer_2_Configuration_Guide/ b_Cisco_APIC_Layer_2_Configuration_Guide_chapter_01010.html
