質問 # 60
Identify two attributes of Distance Vector Protocols: (Choose two)
- A. Use split horizon by default.
- B. Maintain multiple databases: neighbor, topology and routing.
- C. Use holddown timers when topologies change to allow for convergence.
- D. Send information about directly connected links to neighbors at periodic intervals.
正解：A、C
質問 # 61

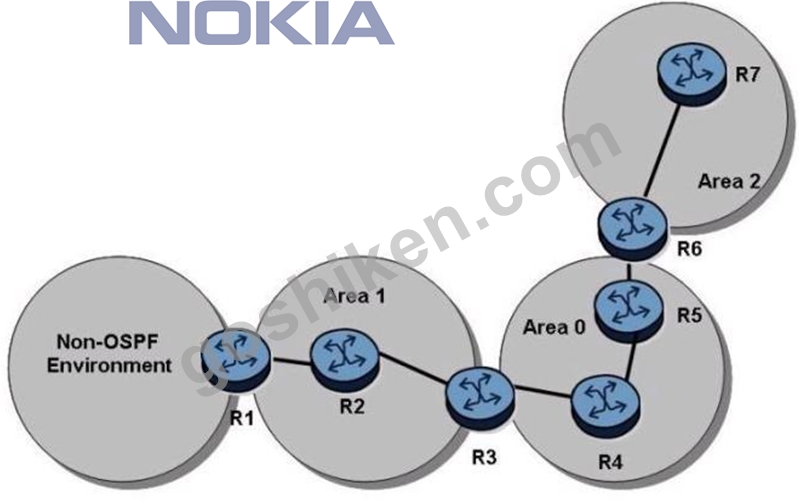

Click the exhibit button.
In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding Type 4 LSA generation is true?
- A. Router R3 generates a Type 4 LSA that is flooded to area 0, and router R6 generates a Type 4 LSA that is flooded to area 2.
- B. Router R1 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.
- C. Router R3 generates a Type 4 LSA that is flooded to areas 0 and 2.
- D. Router R3 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.
正解：A
質問 # 62

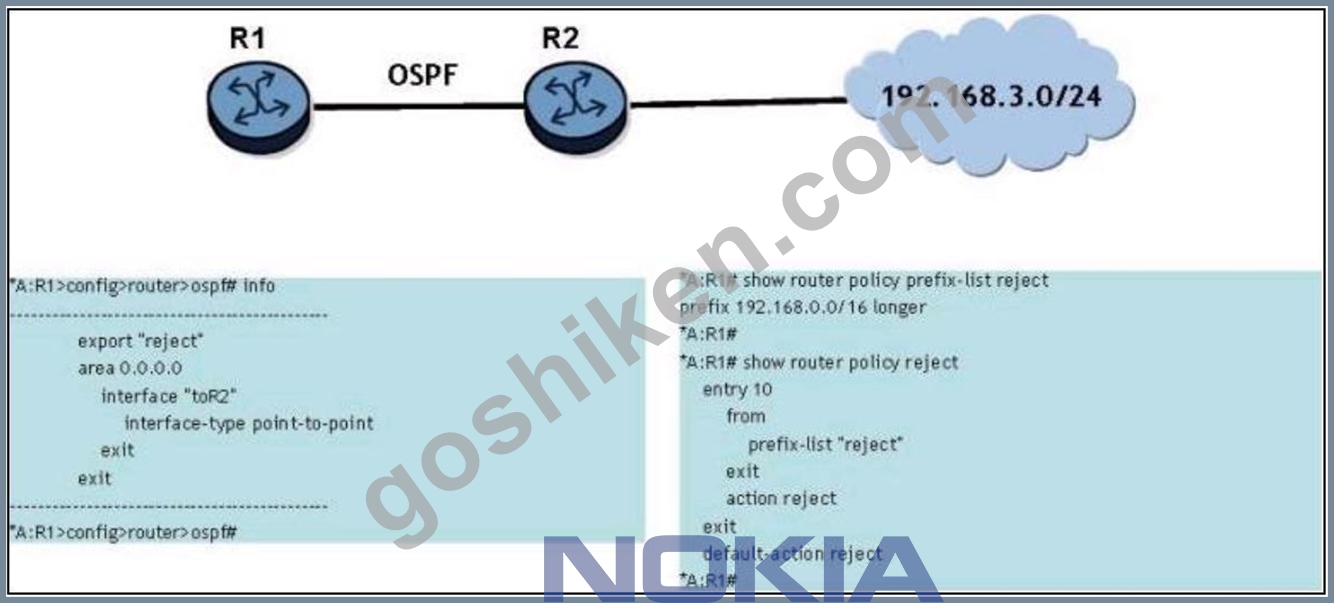

Click the exhibit button.
Router R2 advertises the network 192.168.3.0/24 to router R1 via OSPF. A route policy has been constructed to discard the route on router R1; however, it is not working. What is the problem?
- A. The policy was likely not "committed" after creation.
- B. The policy "reject" should be set for import rather than export.
- C. This is not possible because OSPF cannot use import policies.
- D. Router R1 should be configured as an OSPF "asbr".
- E. The prefix list reject should be "192.168.3.0/16 exact".
正解：C
質問 # 63

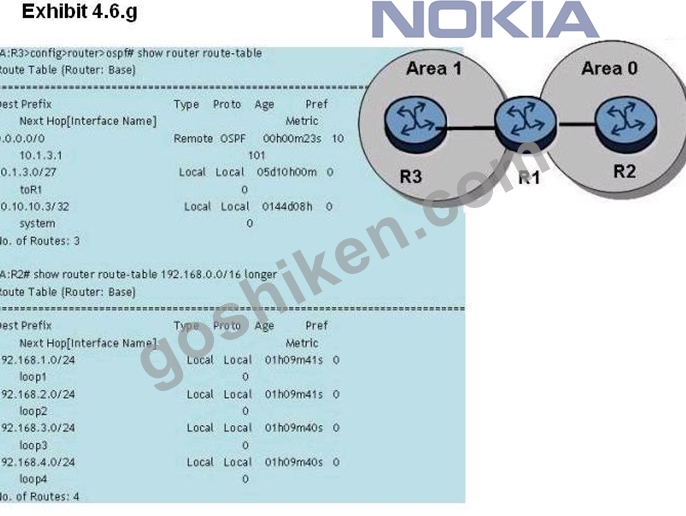

Click the exhibit button.

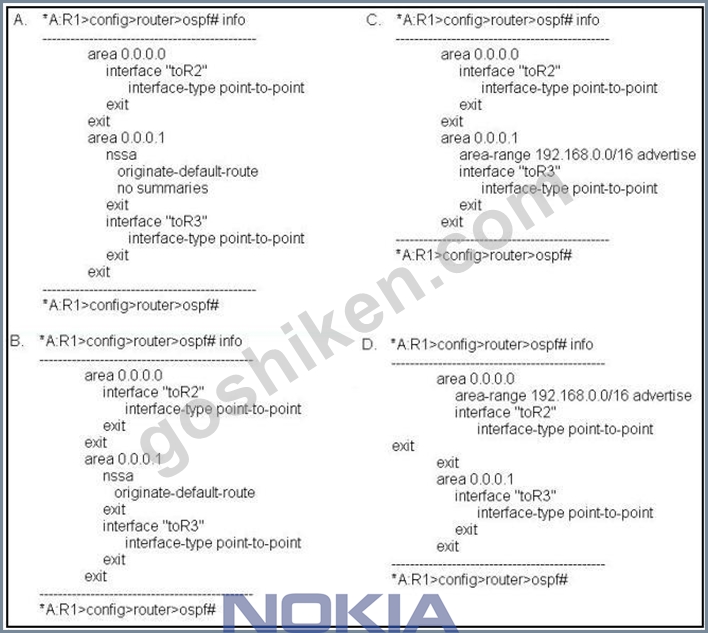

Given the topology and the show commands, and assuming that router R2 advertises all of its loopbacks into OSPF, what is the correct router R1 configuration?
- A. Option A
- B. Option D
- C. Option C
- D. Option B
正解：A
質問 # 64
Which of the following LSA types stay within an OSPF area, and are not flooded outside of the area? Choose two answers.
- A. Router LSA
- B. Summary router LSA
- C. Type 5 (AS external) LSAs
- D. Network LSA
C Summary network LSA
正解：A、D
質問 # 65
NSSA LSA packets are what type within an NSSA area, and are converted to what other type at the ABR?
- A. They are type 5 within the area and are not modified at the ABR
- B. They are type 5 within the area and converted to type 3 at the ABR
- C. They are type 7 within the area and are not modified at the ABR
- D. They are type 7 within the area and converted to type 5 at the ABR
正解：D
質問 # 66
Which one of the commands below will create a static route to network 2.3.4.0/24 on the AlcatelLucent 7750 SR router?
- A. Static route 2.3.4.0/24 next hop 3.4.5.6
- B. Static-route 2.3.4.0/24 next-hop 3.4.5.6
- C. Static-route next-hop 3.4.5.6 2.3.4.0/24
- D. Static route 2.3.4.0 255.255.255.0 next hop 3.4.5.6
正解：B
質問 # 67

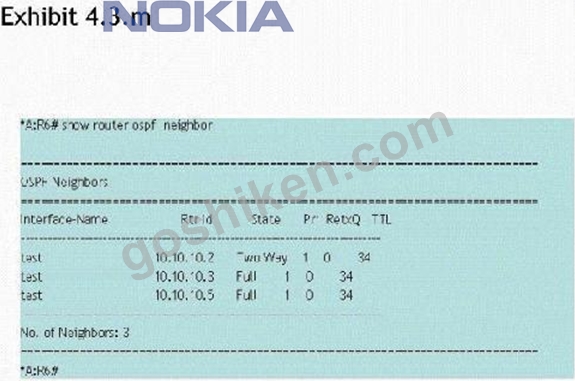

Click the exhibit button.
What can you deduce from the show command on router R6?
- A. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.3.
- B. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.5.
- C. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment; however, this command does not indicate whether 10.10.10.3 or 10.10.10.5 is the DR or BDR.
- D. The router R6 interface is in a multi-access segment. It is the BDR, which is why it is not adjacent to the other routers.
正解：C
質問 # 68
In an IP datagram, which of the following fields identifies the receiving application?
- A. The protocol field of the transport layer header.
- B. The protocol field of the network layer header.
- C. The port field of the transport layer header.
- D. The port field of the network layer address.
正解：C
質問 # 69
Which of the following statements best describes an OSPF type 3 LSA?
- A. An OSPF type 3 LSA is an inter-area LSA, generated by an ASBR to describe external routes.
- B. An OSPF type 3 LSA is an intra-area LSA, generated by the ABR only when route summarization is configured.
- C. An OSPF type 3 LSA is an inter-area LSA, generated by the ABR to describe a route to neighbors outside the area.
- D. An OSPF type 3 LSA is an inter-area LSA, generated by the ABR only when route summarization is configured.
正解：C
質問 # 70
What are some of the characteristics of Nokia's implementation of non-stop routing? (Choose two)
- A. No protocol extensions required
- B. Only supported by OSPF and IS-IS
- C. Transparent to routing neighbors
- D. Uses Graceful Restart to inter-operate with other vendors
正解：A、C
質問 # 71
Which of the following statements regarding area border routers in an OSPF network is true?
- A. The term backbone router has the same definition as the term area border router.
- B. Area border routers connect the backbone area to other areas in an OSPF network.
- C. An OSPF network needs at least one area border router to function.
- D. By definition, an area border router must perform route summarization between areas.
正解：B
質問 # 72
Which of the following are similarities between OSPF and IS-IS? Choose two answers.
- A. Link state updates sent using layer 3 multicast.
- B. Support for CIDR.
- C. Slow convergence after link failures.
- D. Support hierarchy through the use of areas.
- E. Metric is based on hop count.
正解：B、D
質問 # 73
What is the default preference value for a static route in the Nokia 7750 SR router?
- A. 0
- B. 1
- C. 2
- D. 3
正解：C
質問 # 74

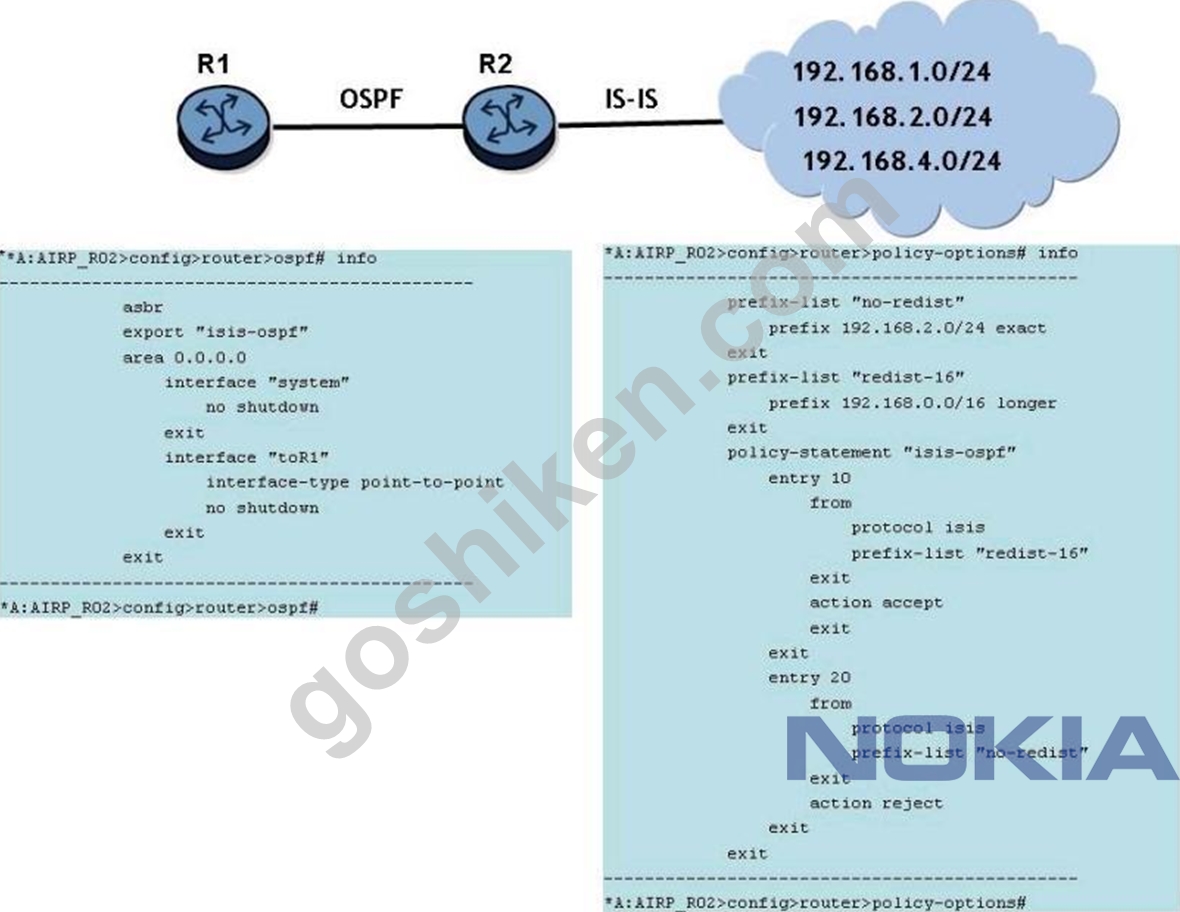

Click on the exhibit.
Router R2 learns the networks shown from IS-IS. Router R2 is configured to redistribute routes from IS-IS to OSPF as shown. Assume the OSPF and IS-IS adjacencies are operational.
How many OSPF Type 5 LSAs will router R1 receive from router R2?
- A. 0
- B. 1
- C. 2
- D. 3
- E. 4
正解：E
質問 # 75

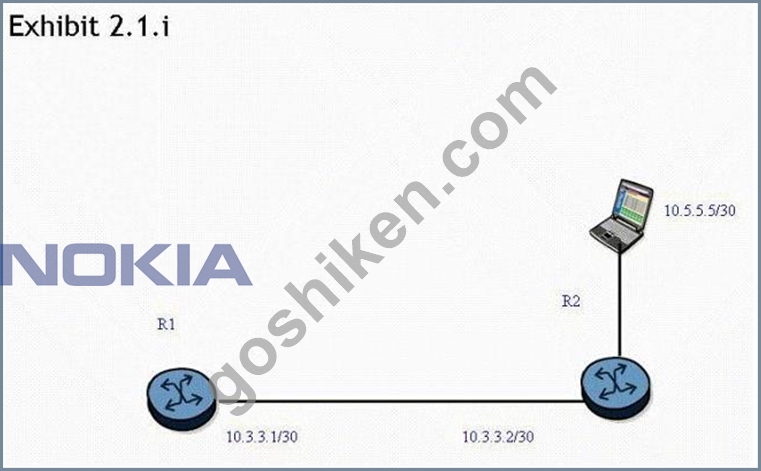

Click the exhibit button.
A static route is created on router R1 "using the "static-route 0.0.0.0/0 next-hop 10.3.3.2" command. What command can be used to test the static route on an Nokia 7750 SR?
- A. ping 10.5.5.5
- B. ping static 0.0.0.0/0
- C. ping 0.0.0.0
- D. ping static 10.5.5.5
正解：A
質問 # 76
A default route for a client is also known as the:
- A. Default path
- B. Default gateway
- C. Proxy ARP
- D. Gateway path
正解：B
質問 # 77
Which LSA type is not found in point-to-point only OSPF networks?
- A. Type 5 External LSA
- B. Type 2 Network LS A
- C. Type 3 Summary LSA
- D. Type 1 Router LSA
正解：B
質問 # 78
If OSPF is used in a multi-area OSPF network, which of the following statements regarding route summarization is true?
- A. Manual route summarization is done on the ABRs. By default, no route summarization is done and all routes are advertised to all areas.
- B. Manual route summarization must be done on all the backbone routers to be effective. Manual route summarization is optional on the routers in non-backbone areas.
- C. Manual route summarization is done on the ABRs. By default, automatic summarization is done; however, it may not be optimal for all networks.
- D. Manual route summarization can only be done on autonomous system border routers.
正解：A
質問 # 79
What causes an adjacency to change from "Init" to "Two Way"?
- A. When a router receives a Hello packet from a neighbor that contains its router id in the neighbor list
- B. When a Link State Update is received in response to a Link State Request
- C. When a Link State Acknowledgement is received in response to a Link State Update
- D. When OSPF neighbors exchange Database Descriptor packets
正解：A
質問 # 80
Click the exhibit button.
The following command sequence is executed on router R2:
A: R2# configure router ospf router-id 10.10.10.99
A: R2# configure router router-id 10.10.10.66
On router R1, what router ID appears for router R2 directly after these commands are executed?
- A. 10.10.10.66
- B. 10.10.10.99
- C. 10.10.10.1
- D. 10.10.10.2
正解：D
質問 # 81
Choose the Distance Vector Protocols from the list below:
- A. IS-IS
- B. RIPv1
- C. OSPF
- D. RIPv2
正解：B、D
質問 # 82
What modes of authentication are supported for RIPv2 on the Nokia 7750 SR?
- A. RIPv2 supports basic and MD5 authentication only.
- B. RIPv2 does not support authentication.
- C. RIPv2 does not support authentication, password and MD5 authentication.
- D. RIPv2 supports password and MD5 authentication only.
正解：C
質問 # 83
If a Router originates a type 1 router LSA with the E bit set what types of areas can it belong to? Select all that apply.
- A. Standard Area
- B. Backbone Area
- C. Not So Stubby Area
- D. Stub Area
正解：A、B、C
質問 # 84
......
