質問 # 34
An administrator is configuring a cluster for ILS and wants to limit the amount of entities that Cisco Unified Communications Manager can write to the database for data that is learned through ILS. Which service parameter is used to adjust this limit?
- A. Global Data Service Parameter Limit
- B. ILS Active Learned Object Upper Limit
- C. Imported Dial Plan Replication Database Object Lower Limit
- D. ILS Max Number of Learned Objects in Database
正解：D
解説：
Reference:
https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/12_5_1SU1/systemConfig/ cucm_b_system-configuration-guide-1251su1/cucm_b_system-configuration-guide- 1251su1_restructured_chapter_0100011.html#CUCM_TK_I7C708C2_00
質問 # 35
Which two descriptions of the Standard Local Route Group deployment are true? (Choose two.)
- A. chooses the route group that is configured under the device pool of the calling-party device
- B. chooses the route group that is configured under the device pool of the called-party device
- C. can be associated under the route group
- D. can be associated only under the route list
- E. can be assigned directly to the route pattern
正解：B、D
質問 # 36
The Cisco Unified Communications Manager Dialed Number Analyzer allows analysis of calls from which two devices? (Choose two.)
- A. CTI route points
- B. CTI ports
- C. translation patterns
- D. IP phones
- E. device pools
正解：B、D
質問 # 37

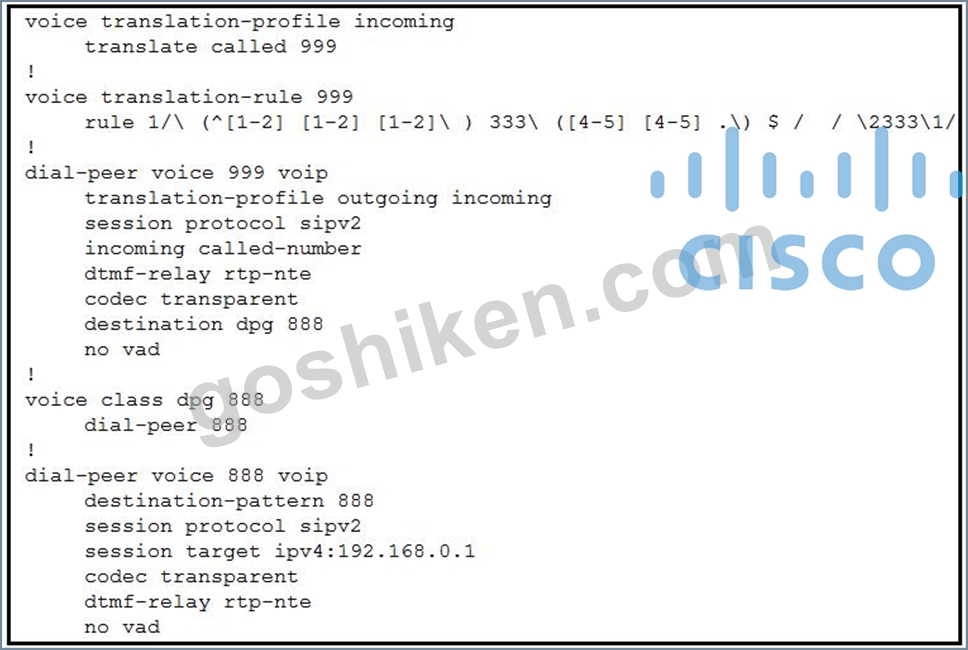

Refer to the exhibit.
Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number "222333444" and Cisco Unified Communications Manager is expecting the called number to be delivered as "444333222". The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit. Which action must the administrator take to fix the issue?
- A. Create specific matching for "222333444" on the incoming dial peer.
- B. Set up translation-profile on the incoming dial peer to match incoming traffic.
- C. Fix the voice translation-rule to match specifically number "222333444" and change it to "444333222".
- D. Change the destination-pattern on the outgoing dial peer to match "444333222".
正解：B
質問 # 38

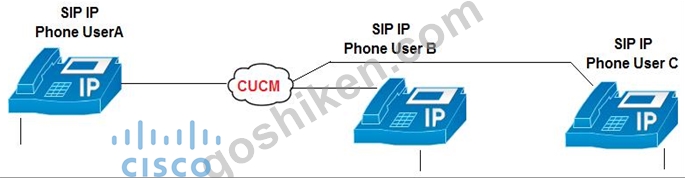

Refer to the exhibit.
In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C.
Which two scenarios are correct? (Choose two.)
- A. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_B User Hold MOH Audio Source settings.
- B. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_A User Hold MOH Audio Source settings.
- C. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the music on hold and the MOH audio is chosen from Phone_A Network Hold MOH Audio Source settings.
- D. Phone_B sends a SIP-REFER message to the Cisco Unified CM with Phone_C information in the Refer-To section.
- E. Phone_A sends a SIP-REFER message to the Cisco Unified Communications Manager with Phone_C information in the Refer-To section.
正解：C、E
質問 # 39

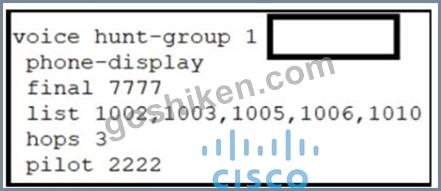

Refer to the exhibit.
DN 1003 was the last to ring during the most recent call. Which hunting method ensures that DN 1005 is presented with the next call when the hunt pilot is dialed?
- A. sequential
- B. peer
- C. parallel
- D. call-blast
正解：B
質問 # 40
Which configuration element of a hunt group allows for changing Calling Party Transformations settings?
- A. hunt list
- B. route group
- C. hunt pilot
- D. line group
正解：C
質問 # 41

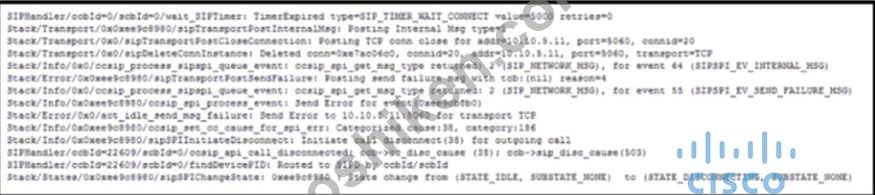

Refer to the exhibit.
An administrator has configured a SIP trunk between two Cisco UCM clusters. For calls that should use the trunk, the calls fail with a fast busy. The administrator checks the Cisco CallManager SDL traces and found that the cluster to which the calling device is registered never sends an INVITE to the destination cluster. The administrator also verifies that all nodes from both clusters are powered on, and the CallManager service is running. How is this issue resolved?
- A. The administrator needs to enable OPTIONS pings on the SIP trunks for both clusters.
- B. The administrator must associate the route pattern with a calling search space the device can dial.
- C. The administrator needs to disable OPTIONS pings on the SIP trunks for both clusters.
- D. The administrator must allow connectivity so that TCP connections do not fail between the nodes.
正解：D
質問 # 42

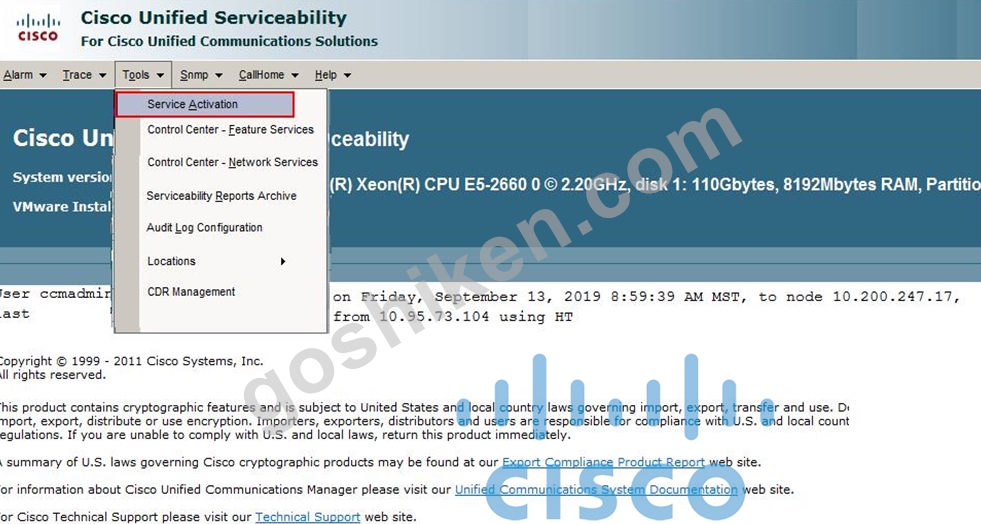

Refer to the exhibit.
An administrator is troubleshooting a situation where a call placed from a phone registered to Cisco Unified Communications Manager does not complete. The administrator wants to use the Dialed Number Analyzer on Cisco Unified CM to check which translation pattern the call is matching. However, when logging in to Cisco Unified Serviceability there is no option for Dialed Number Analyzer under the tool menu. Which two steps must be performed to resolve this issue? (Choose two.)
- A. Activate the Cisco Dialed Number Analyzer service.
- B. Activate the Cisco Extended Functions service.
- C. Activate the Cisco CallManager service.
- D. Activate the Cisco Dialed Number Analyzer Server service.
- E. Restart the subscriber
正解：A、D
質問 # 43
A customer routes PSTN calls to ITSP through a SIP trunk on Cisco UCM that forwards and receives calls to and from ITSP. ITSP is set to send an E.164 number when the customer's extension is four digits. Which action should be taken to route the incoming calls to four-digit extensions?
- A. Configure a voice translation rule to map the E.164 number to four digits and assign it to the incoming dial-peer on Cisco Unified Border Element.
- B. Configure a voice translation profile to map the E.164 number to four digits and assign it to the incoming dial-peer on Cisco Unified Border Element.
- C. Set the Significant Digits to 4 on the SIP trunk.
- D. Set the Significant Digits to 8 on the SIP trunk.
正解：C
質問 # 44
What is first preference condition matched in a SIP-enabled incoming dial peer?
- A. incoming called-number
- B. answer-address
- C. incoming uri
- D. target carrier-id
正解：C
解説：
Reference:
https://www.cisco.com/c/en/us/support/docs/voice/ip-telephony-voice-over-ip-voip/211306-In- Depth-Explanation-of-Cisco-IOS-and-IO.html#anc8
質問 # 45
Which two extended capabilities must be configured on dial peers for fast start-to-early media scenarios (H.323 to SIP interworking)? (Choose two.)
- A. FAX
- B. VIDEO
- C. BFCP
- D. DTMF
- E. AUDIO
正解：C、D
質問 # 46
An administrator is configuring a cluster for ILS and wants to limit the amount of entities that Cisco Unified Communications Manager can write to the database for data that is learned through ILS. Which service parameter is used to adjust this limit?
- A. Global Data Service Parameter Limit
- B. ILS Active Learned Object Upper Limit
- C. Imported Dial Plan Replication Database Object Lower Limit
- D. ILS Max Number of Learned Objects in Database
正解：D
解説：
Section: Cisco Unified CM Call Control Features
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/12_5_1SU1/systemConfig/ cucm_b_system-configuration-guide-1251su1/cucm_b_system-configuration-guide-
1251su1_restructured_chapter_0100011.html#CUCM_TK_I7C708C2_00
質問 # 47
Due to a shortage of physical interfaces on a device the administrator requires that a loopback for RTP is used.
Which command is required when using a loopback interface for RTP?
- A. voice-class sip bind control source-interface Loopback0
- B. voice-class sip resources priority mode passthrough
- C. voice-class sip bind media source-interface Loopback0
- D. voice-class sip early-offer forced.
正解：C
質問 # 48
A user reports when they press the services key they do not receive a user ID and password prompt to assign the phone extension. Which action resolves the issue?
- A. Assign the extension as a mobile extension.
- B. Subscribe the phone to the Cisco Extension Mobility service.
- C. Create the default device profiles for all phone models that are used.
- D. Create the end user and associate it to the device profile.
正解：B
解説：
Section: Mobility
Explanation/Reference:
質問 # 49

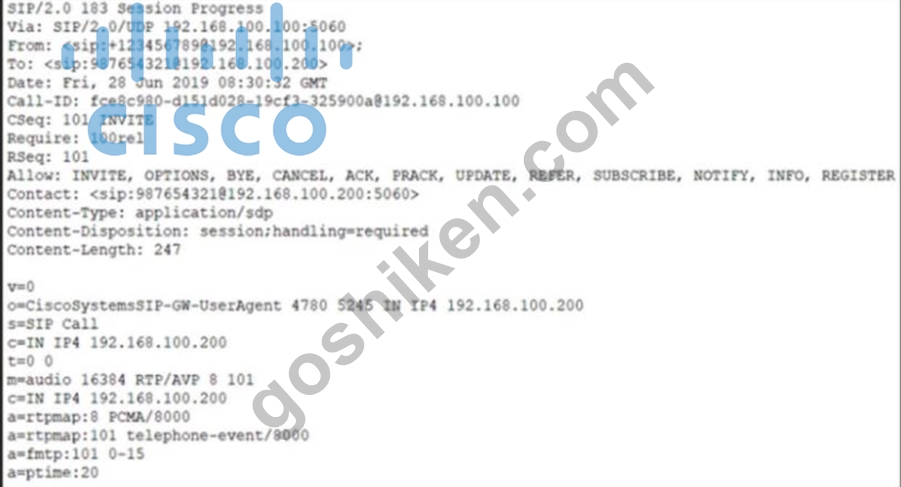

Refer to the exhibit.
While troubleshooting call failures on the Cisco Unified Border Element, an administrator notices that messages are being sent to the service provider, but there is no response The administrator later learns that this SIP provider does not support PRACK. Which header should be removed from the SIP message to resolve this issue?
- A. Require 100rel
- B. Content-Disposition: session:handling=required
- C. Contact <sip:[email protected]:5060>
- D. Content-Type: application/sdp
正解：A
質問 # 50
A user in location X dials an extension at location Y.
The call travels through a QoS-enabled WAN network, but the user experiences choppy or clipped audio. What is the cause of this issue?
- A. codec mismatch
- B. phone class of service issue
- C. missing Call Admission Control
- D. ptime mismatch
正解：C
質問 # 51

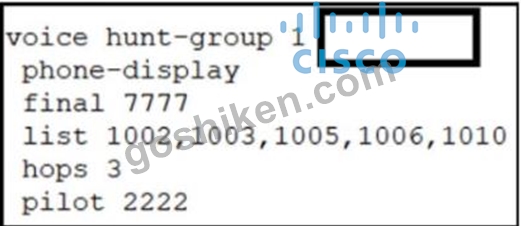

Refer to the exhibit.
DN 1003 was the last to ring during the most recent call. Which hunting method ensures that DN 1005 is presented with the next call when the hunt pilot is dialed?
- A. sequential
- B. peer
- C. parallel
- D. call-blast
正解：B
質問 # 52
Which IOS command creates a SIP-enabled dial peer?
- A. voice dial-peer 20 sip
- B. dial-peer voice 20 voip
- C. dial peer voice 20 sip
- D. dial-peer voice 20 pots
正解：B
質問 # 53

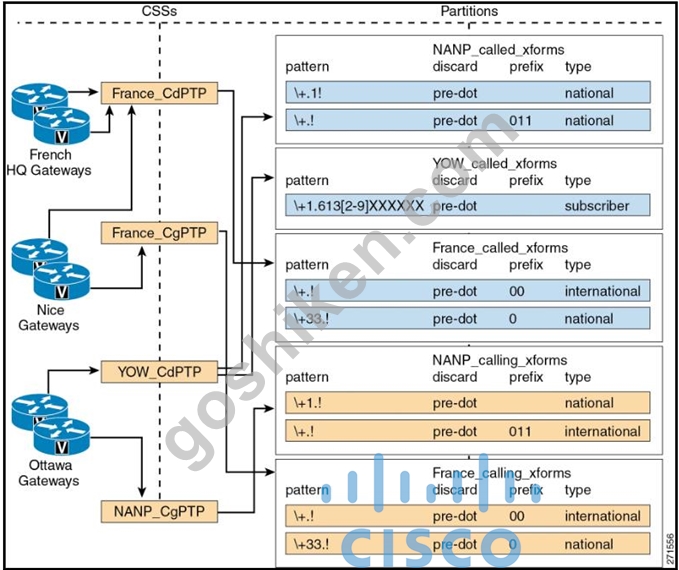

Refer to the exhibit.
Within the North American Numbering Plan, gateways located in Ottawa, Canada and marked as "YOW" are assigned to the Calling Party Transformation CSS NANP_CgPTP, which contains partition NANP_calling_xforms. What is the calling-party number and the numbering type if the calling user +1613-555-1234 dials the number?
- A. calling number 613-555-1234 and numbering type "national"
- B. calling number 613-555-1234 and numbering type "subscriber"
- C. calling number 011613-555-1234 and numbering type "international"
- D. calling number 011-1-613-555-1234 and numbering type "subscriber"
正解：A
